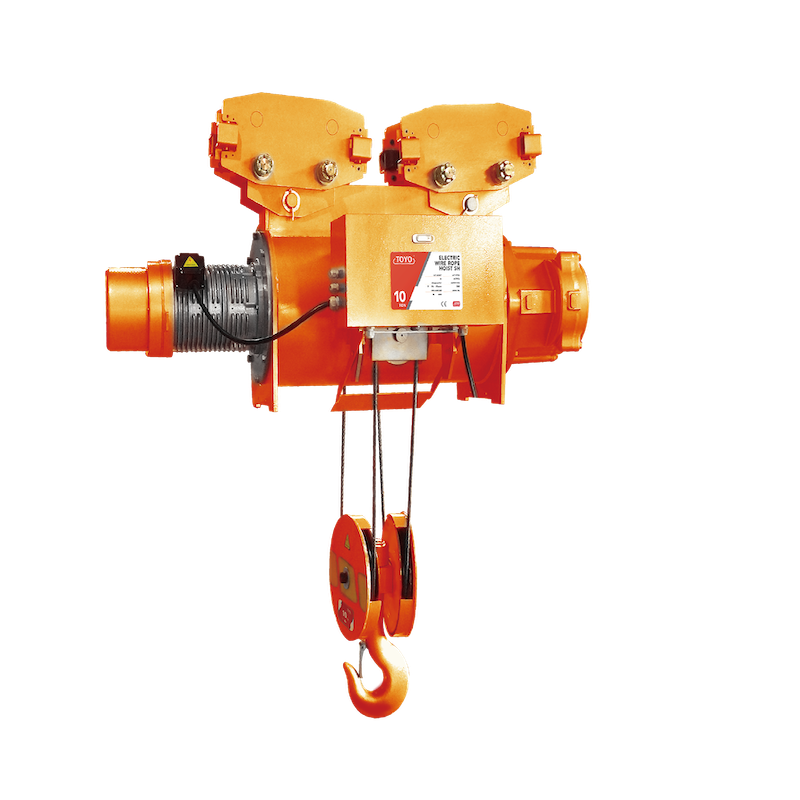

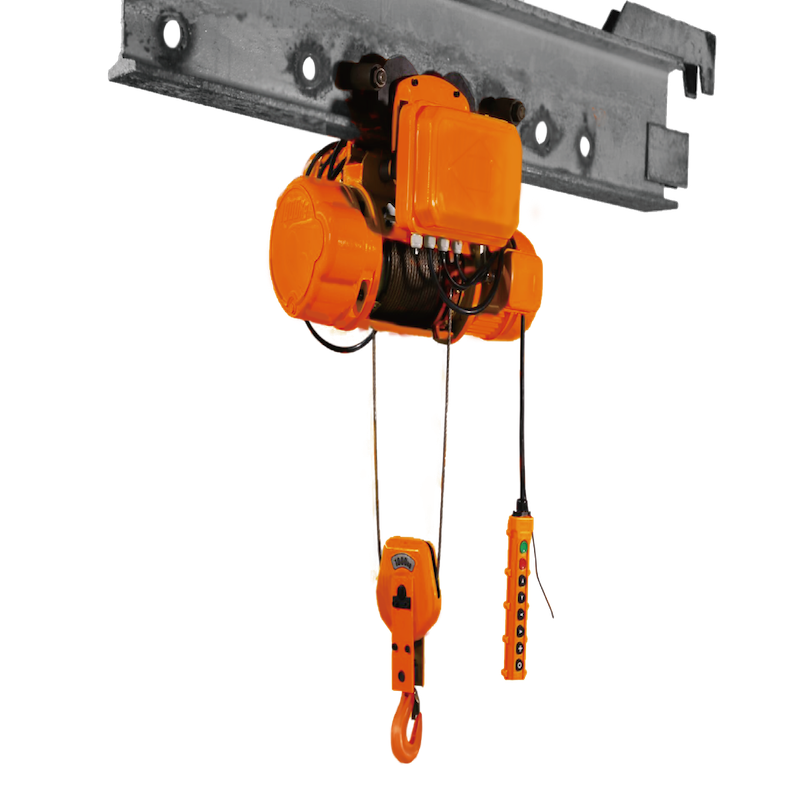

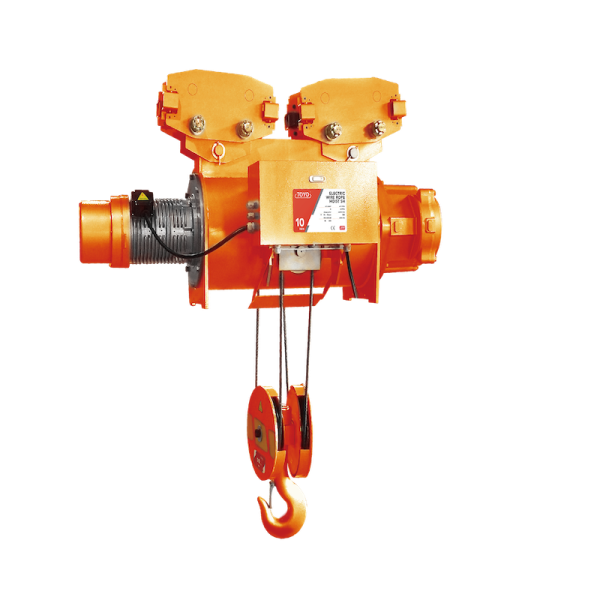

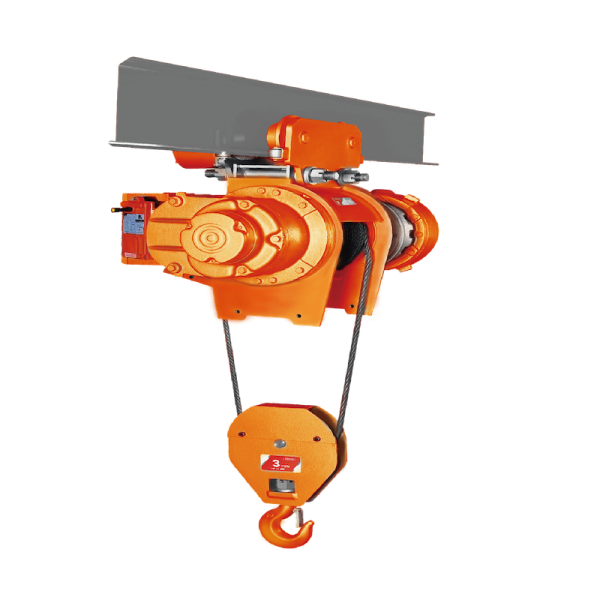

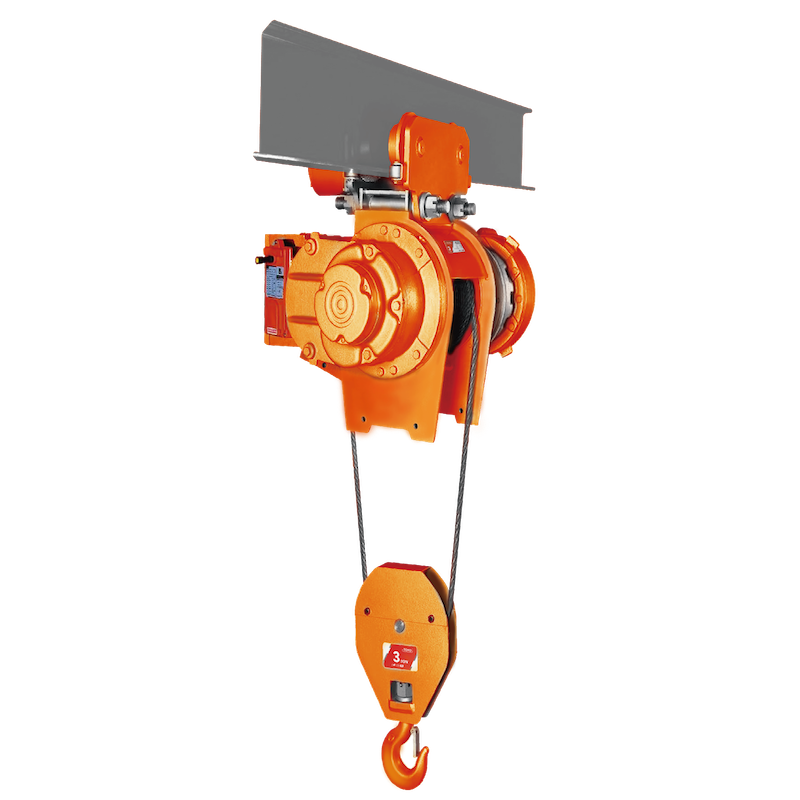

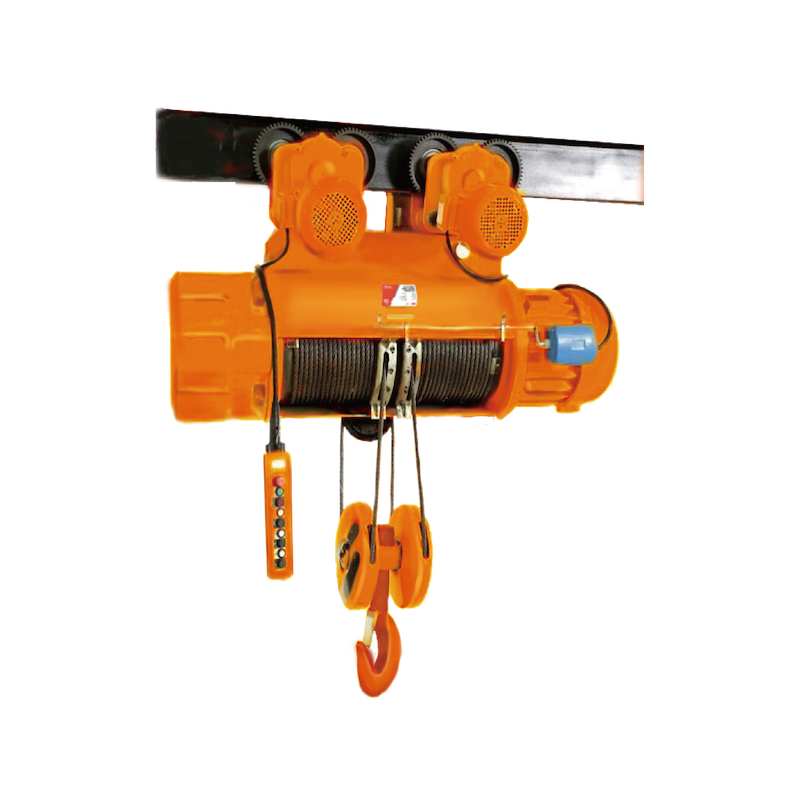

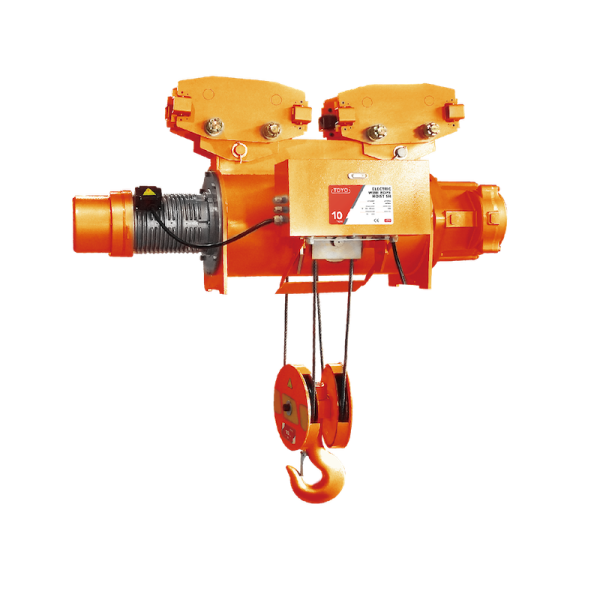

TOYO SH model Electric industrial wire rope hoist for single beam product description
TOYO SH model Electric industrial wire rope hoist for single beam has the advantages of compact structure, light weight, small size and easy operation.It can be installed separately on the overhead i-beam, also can be matched to be installed on the electric or manual single beam, double beam, cantilever, gantry and other cranes.In fine operation, when the lifting speed of TOYO SH model electric hoist cannot meet the requirements, the TOYO SH model two-speed electric hoist should be selected.
Range of application
Used in factories, mines, docks, warehouses, freight yard work environment, such as temperature – 20 ~ + 40 ℃, relative humidity is not more than 85% of the venues.It is prohibited to use in places with explosion danger, full of sulfuric acid or other corrosive gases, and places where molten metal, toxic substances and inflammable substances are hoisted to ensure safety.When dust is serious or in the open air use, need to add protective device.
Product advantage
TOYO SH model electric hoist is a necessary machine to improve labor efficiency and labor conditions. Its products have the following advantages:
- Various varieties and specifications, wide selection of lifting and running speed;
- Compact structure, smooth operation;
- High cost performance, easy to use;
- Strong universality of parts;
- Electric cars with different speeds can be selected;
Technical content

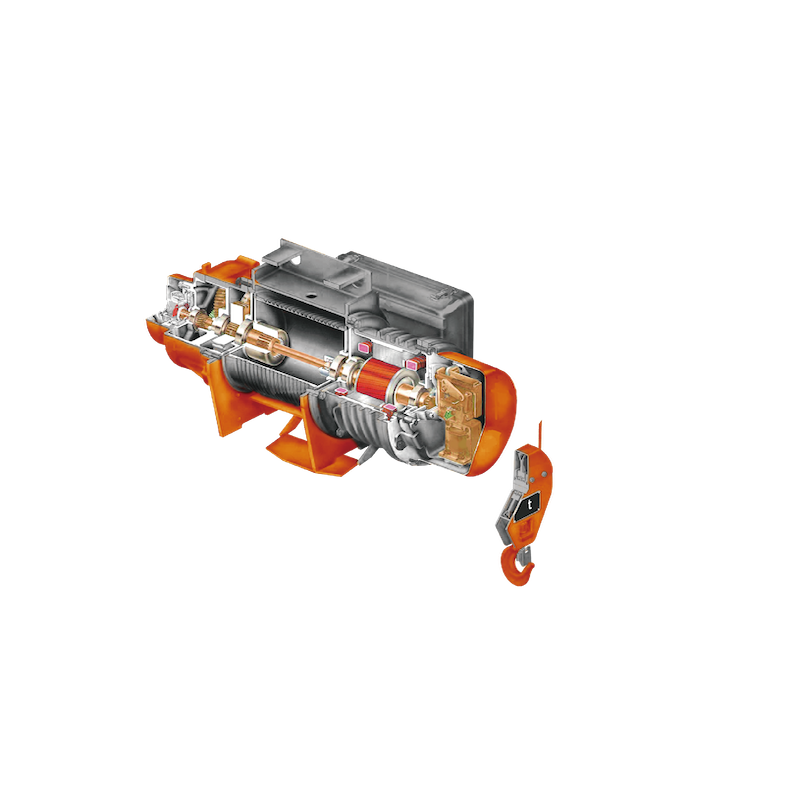

- The hoist adopts conical rotor motor, which integrates power and braking power;
- The hook is made of high strength steel and equipped with locking device;
- With overload, over-current, loss of voltage, break equal protection function;
- Wide application range of power supply, 24V, 36V,48V,110V safety voltage control, can be divided into wireless and wired control, make the operation more safe;
- Brake material without asbestos and other harmful components, making the product more environmentally friendly.
