Product Advantages

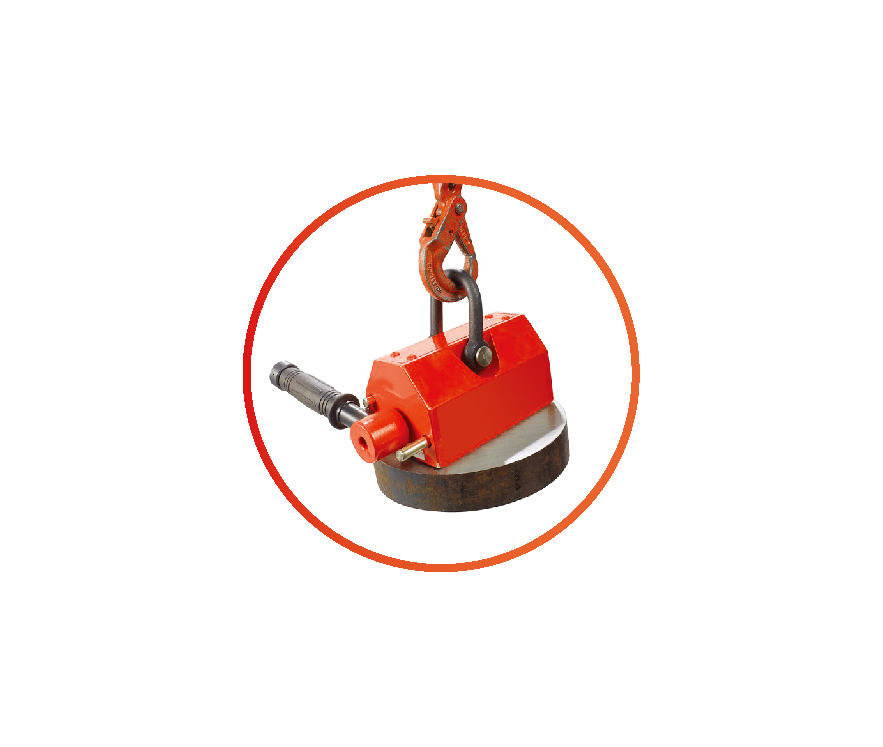

Permanent Magnetic Lifters Model PML is mainly used for connecting component during lifting and handing operation. They can hoist moving iron docks, cylindrical and other magnetic material. They are easy for operation, safe in handing, lightly and ingeniously structured. Hence they are widely used as hoisting devices in factories, docks warehouses and transportation industries. By using them, you can improve your working conditions and increase your working efficiency.
Features

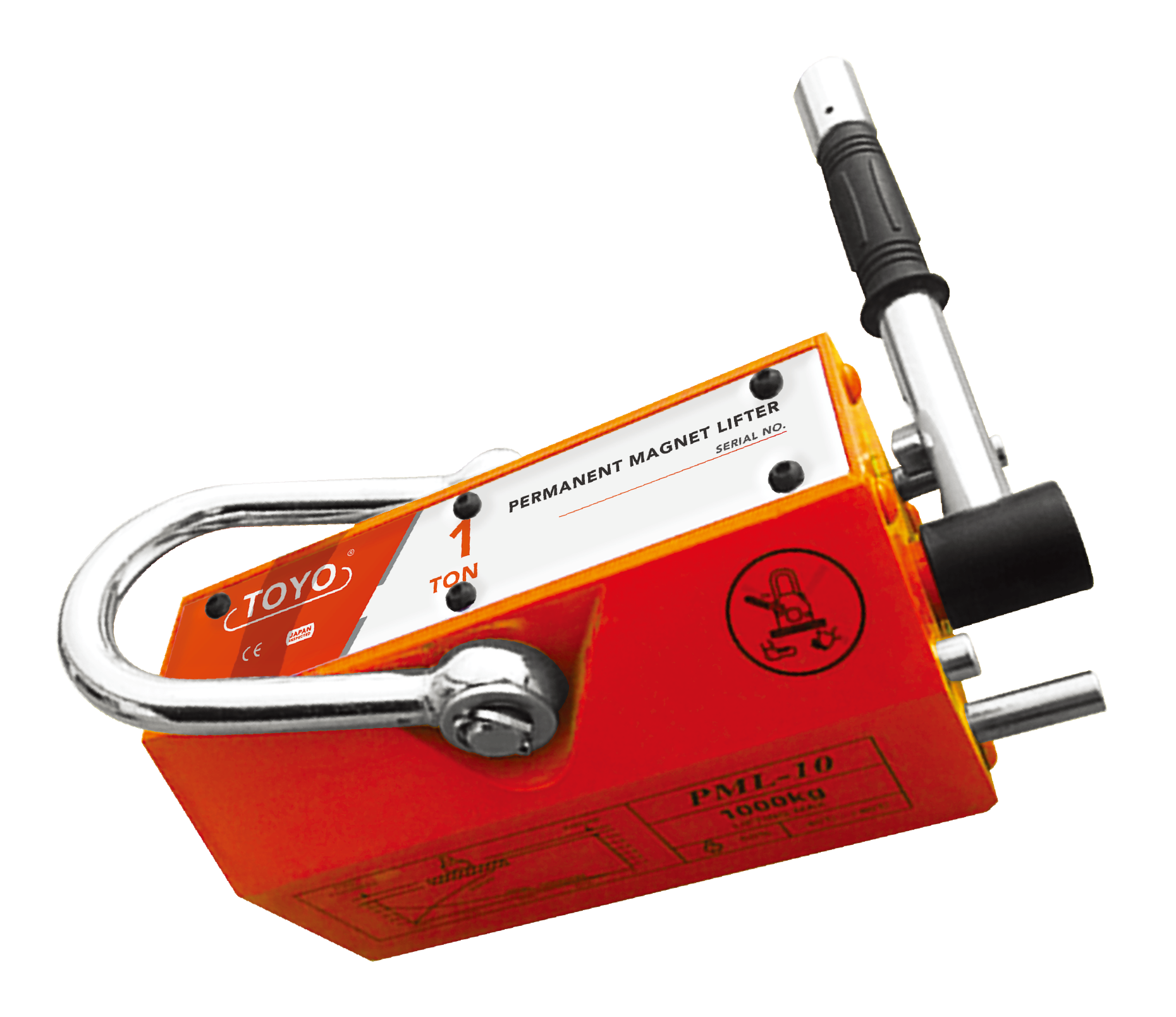

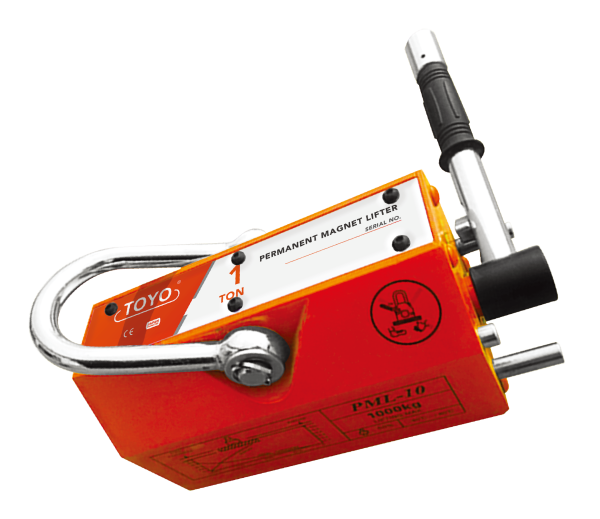

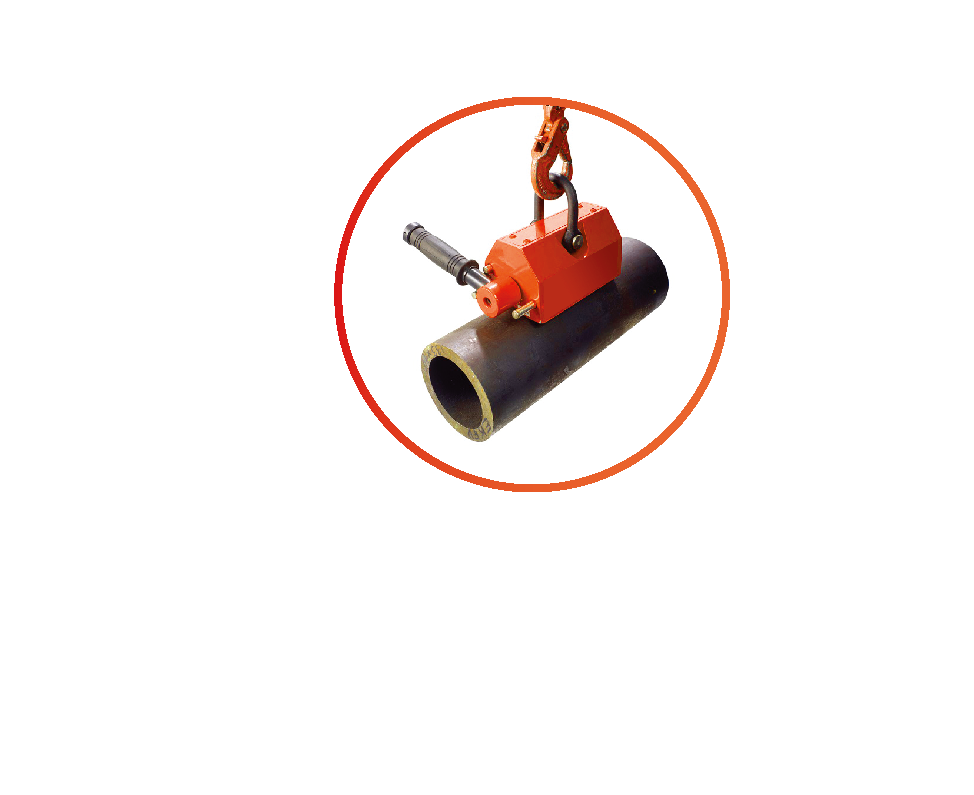

MODEL PML Permanent Magnetic Lifter has strong magnetic path produced by NdFeB magnetic materials. On and off the magnetic path is controlled by turning the manual nozzle. There are shackles on the top of Magnetic Lifting Hoist for lifting, a V slot on the holding cylindrical component.

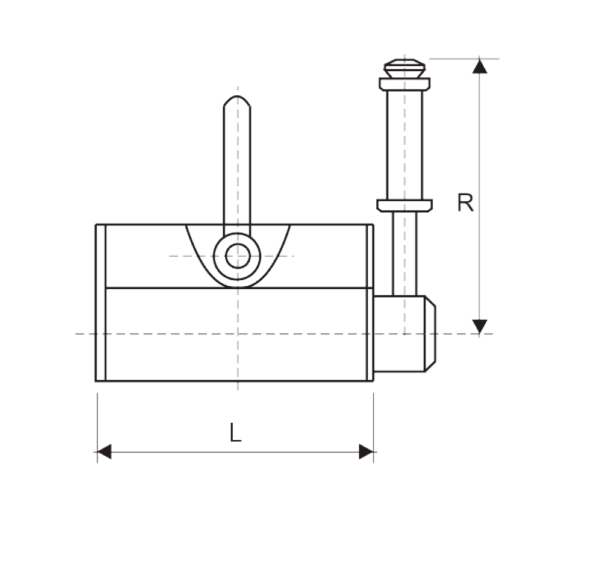

Sizes
Technical Parameters
Model Rated lifting strength (kg) Sizes(mm) Dead Weight (kg) L B H1 H2 B1 F G
PML -100 100 137 62 66 45 145 31.5 21 4.2
PML -300 300 199 90 95 68 230 50 38 10.8
PML -600 600 263 115 107 78 290 58 42 21.2
PML-1000 1000 303 150 140 88 360 64 50 42
PML -1500 1500 348 166 156 102 450 76 56 61.4
PML -2000 2000 394 175 170 102 460 76 56 79.4
