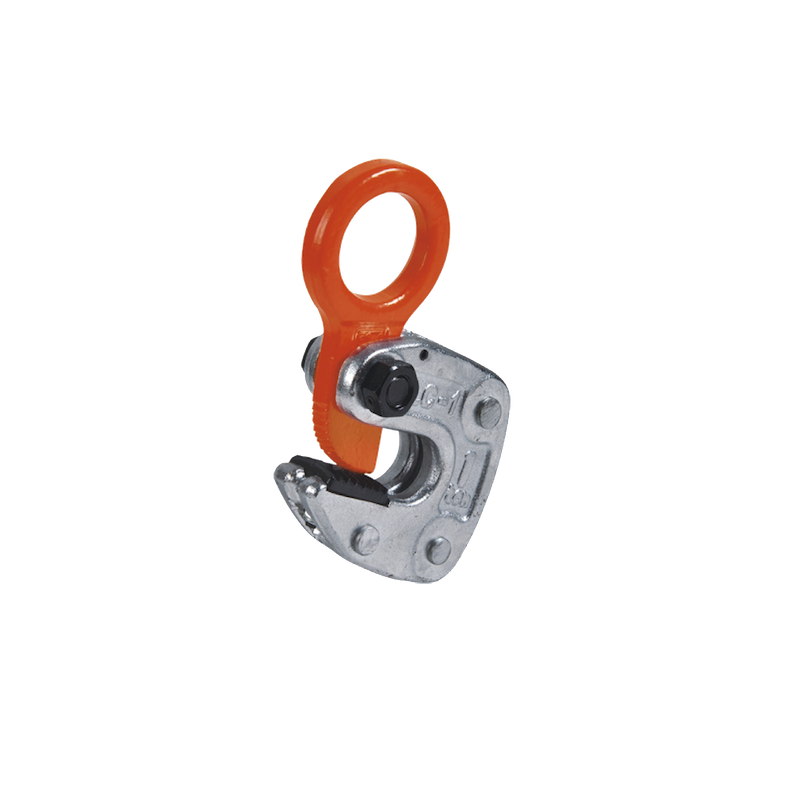

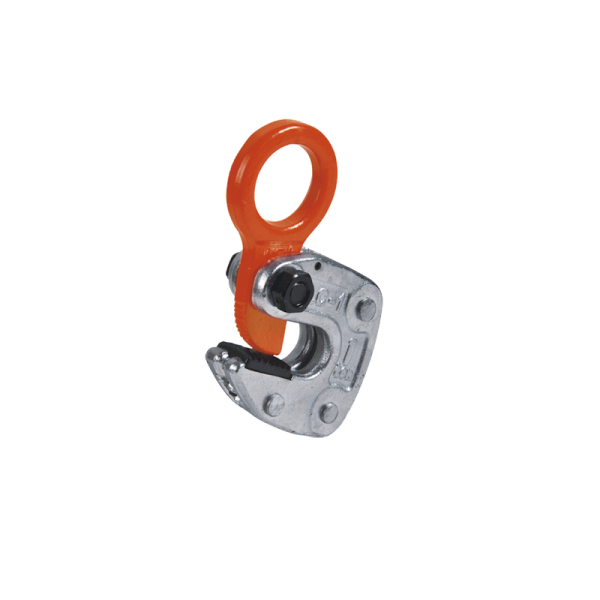

TOYO LC type Clamp
LC clamp is used for HORIZONTAL LIFTING and transfer of steel plates. These clamps are light in weight relative to their lifting capacity. Please note that the WLL of these clamps is given based on a pair. The clamps are suitable for surface hard-nesses up to 37RC (345,HB). It particularly used in building construction field, ship building field, metal production workshop, subway construction (civil engineering construction ) sites.
Safety technical feature
Embossed branding, PI code for good traceability and quality guarantee
All forged parts with stock availability at any time.
High strength and durability with MBL of 500% of capacity, or better.
Standard design clamp for vertical lifting of steel plates and steel structures.
The spring-loaded tightening lock mechanism assures a positive initial clamping force.
Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The main body and the shackle are made of die-forged special alloy steel, which are optimally tempered for maximum strength and durability.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
Suitable for the lifting and horizontal transfer of single steel plates and beams.
Can be used single-handedly or in pairs.
Fitted with a locking device for both open and closed positions
FAQ
1.We can reply you within 24 hours.
2.We can provide OEM service,and design label for you.
3.We can pack the goods according to your requirement(carton,wooden case,pallet).
4.We test the quality of all products before deliverying.
5.Fast delivery.(lf order is urgent,please tell us at the beginning).
6.Best quality with reasonable price.
7.Any other services you need,we will try to satisfy you.
