Product Information
Capacity: 0.5T-10T
Legal standard: JB/ T8521-2007

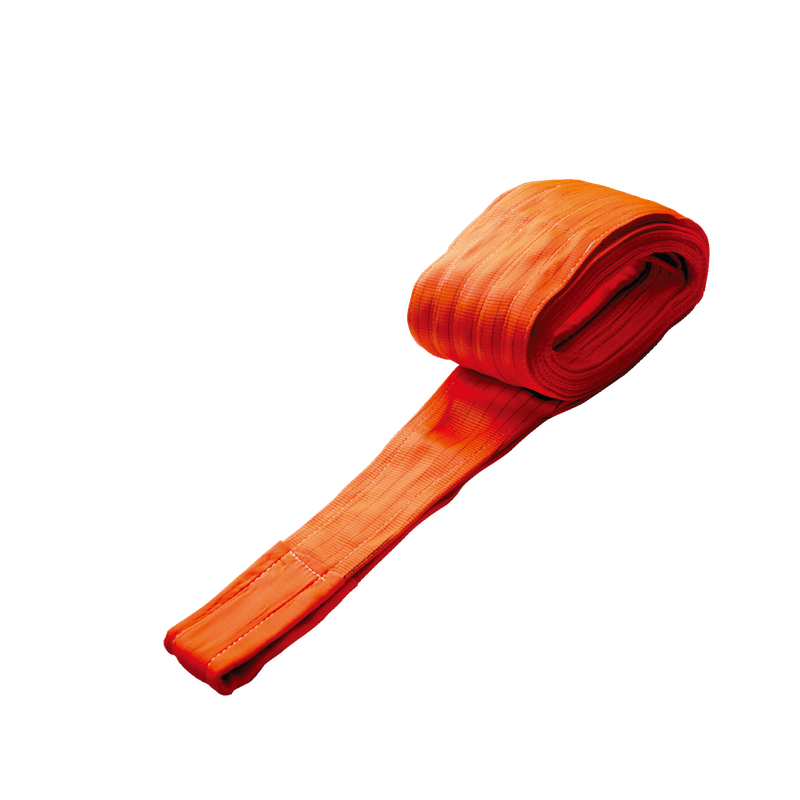

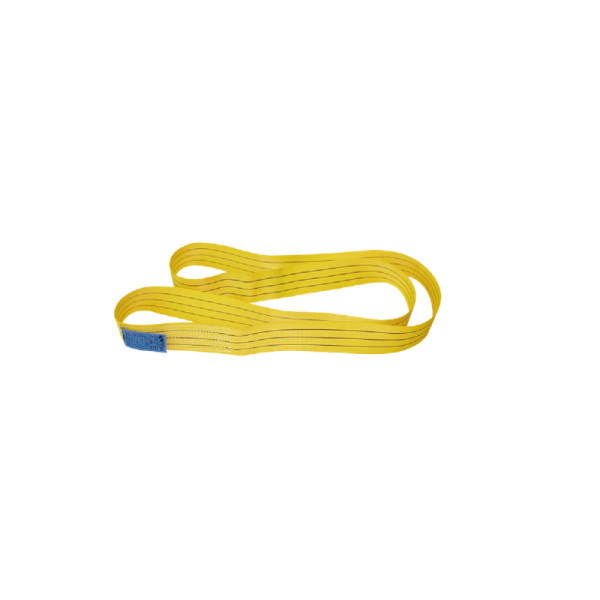

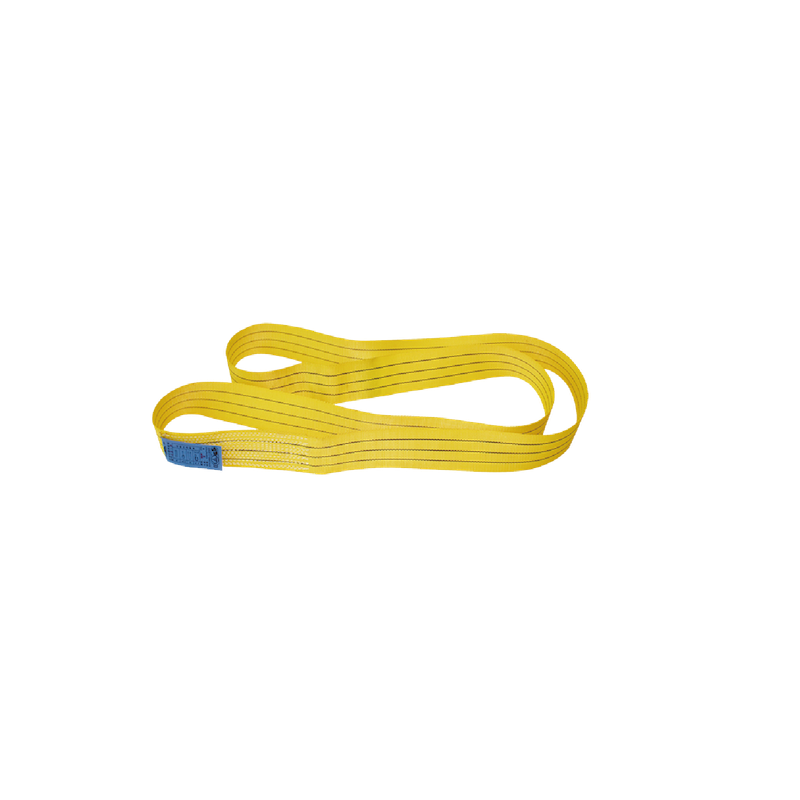

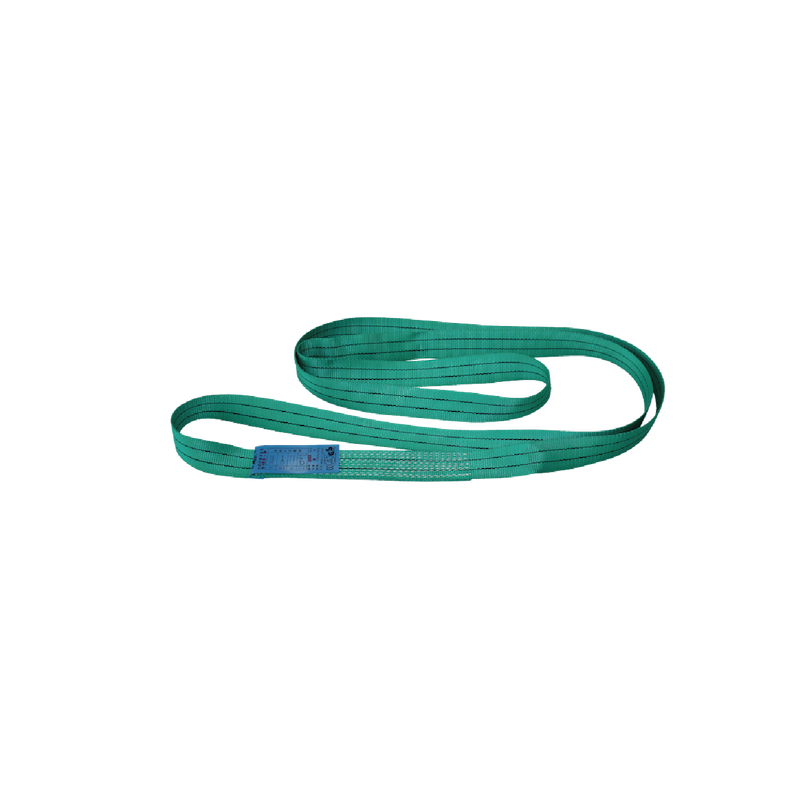

EB white webbing sling is the ideal sling which has wide and smooth appearance no damage to the load objects.
Because it is resistant to mineral acids and alkali, it is suitable for paints plastics and pipes after anticorrosion treatment.
The high tensile anti acids and alkalis webbing sling is used for lifting goods in chemical industry specially in electroplate.
Technical Parameters
Max.SWL=Mode Coefficient P x Working Load Limit Max,SWL Of Lifting Method
Model Minimum Breaking Load Working Load Limit P=1(kg) Upright P=0.8(kg)Choked P=1.8(kg) Angle45° P=1.4(kg) Angle19°
EB-01 4000 1000 1000 800 1800 1400
EB-02 8000 2000 2000 1600 3600 2800
EB-03 12000 3000 3000 2400 5400 4200
EB-04 16000 4000 4000 3200 7200 5600
EB-05 20000 5000 5000 4000 9000 7000
EB-06 24000 6000 6000 4800 10800 8400
EB-08 32000 8000 8000 6400 14400 11200
EB-10 40000 10000 10000 8000 18000 14000
